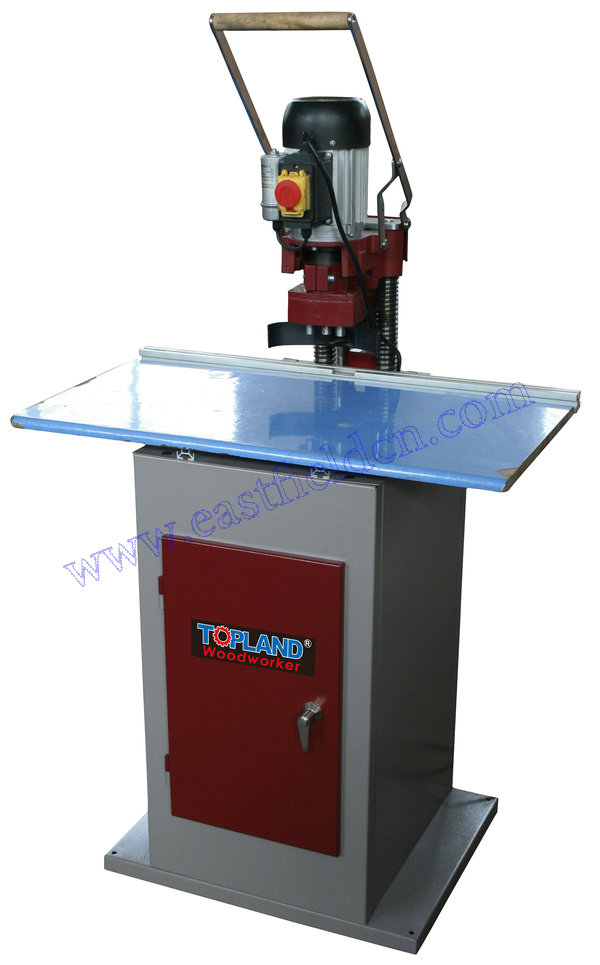

Vertical line boring machine
Model VBM5

Motor: 230V~,50Hz, 1100W
           400V,3~,50Hz, 1100W
Main table size: 800x400 mm

Morticing size:   13 mm
Morticing depth:   56 mm
Chuck quantity:    5 pcs
Chuck interval:    32 mm

Chuck speed:   2840 rpm
Packing size: 820x353x515 mm
Weight: 55/59 kg

Features:
Solid cabinet stand
Dust outlet for easy cleaning
Built-in cabinet door for tools storage

Optional line head
Optional hinge boring head for HETTICH/BLUM/SALICE

110v~,60Hz, 220V,3~, 60Hz motor availabl e
