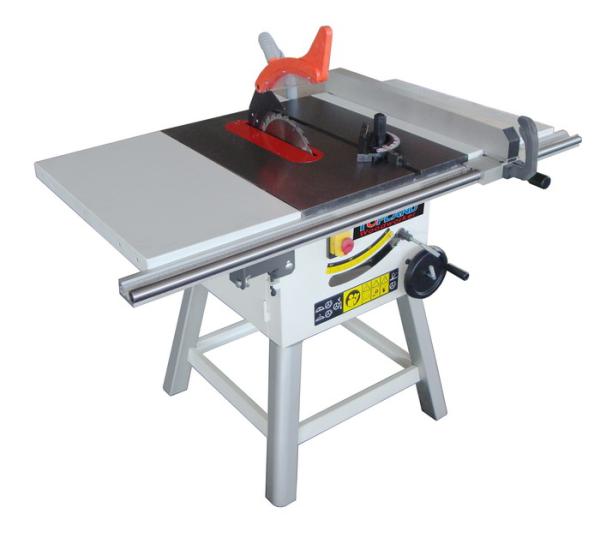

Table Saw Panel Saw

TS250E

Motor: 230V~,50Hz,1500W or 400V,3~,50Hz, 2000W
Blade size: 254x15.875(5/8")x3 mm
Blade speed: 3200 rpm
Max cutting depth: 75mm @ 90degree; 50 mm @ 45degree
Main table size: 650x505 mm
Extension Right table size: 650x350mm
Extension Left table size: 650x350mm
Packing size: 620x700x530 mm & 900x250x220 mm& 80x50x1400 mm
Weight: 96/115 kg

Features:

Fine adjustable & quick lock rip fence.
Heavy duty mechanism.
Optional mobile wheel kit.
Blade Tilting 45 degree

110v~,60Hz, 220V,3~, 60Hz motor available
