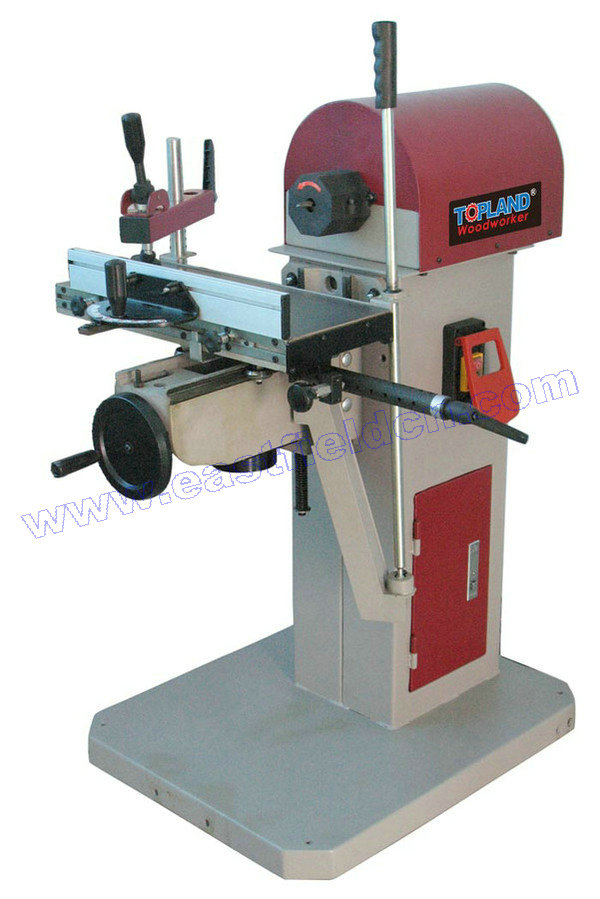

Mortising Machine
Model MM2200

Motor: 230V~,50Hz, 2200W
           400V,3~,50Hz, 2200W
Table size: 500x210 mm

Chuck capacity:  16 mm

Max morticing depth: 140 mm
Table movement lateral: 290 mm
Table movement longitudinal: 140 mm
Dust port size: 100 mm
Packing size: 840x715x680 mm (60pcs/20')
Weight: 97/117 kg

Lower assembling fork for drilling/mortising thick workpiece
Pin drilling device with 4 different defined engage position of 16, 20, 22, 25mm
Built-in cabinet door for tools staorage

110v~,60Hz, 220V,3~, 60Hz motor availabl e
