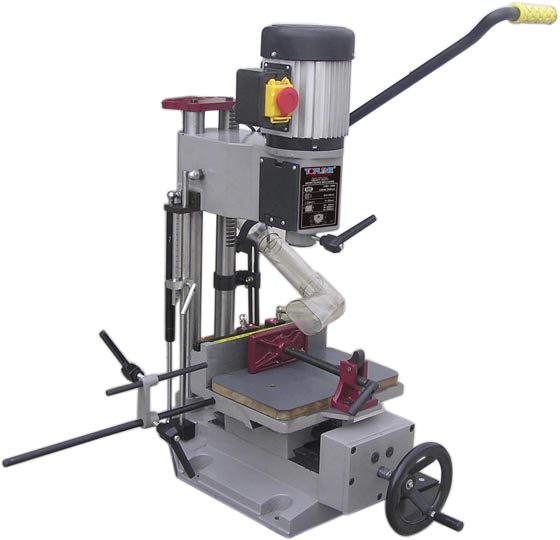

Mortising Machine
Model MM19

Motor: 230V~,50Hz, 550W,285rpm
Chuck capacity: B16 16mm
Chisel capacity: 6-19mm
Max morticing depth: 76mm
Max timber height: 160mm
Max timber width: 140mm
Table movement lateral: 160mm
Table movement longitudinal: 240 mm
Packing size: 720x345x810 mm
Weight: 85/100kg

Features:
1" (25mm) capacity for soft wood
Single handwheel for both longitudinal & laterial movement
Tool holder
Quick release vise
Optional cabinet stand
Optional 100mm dust kit

110V~,60Hz motor avaliable
