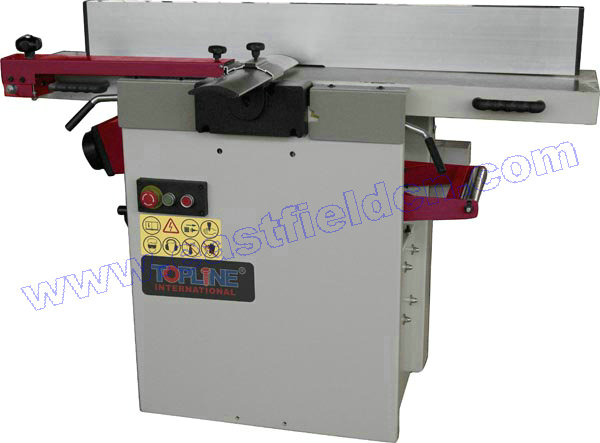

Planer & Thicknesser
Model PT129

Motor power::       230V~,50Hz, 3000 W or    400V,3~,50Hz, 3800 w
Cutter block diameter:     70 mm
Number of cutter:     3
Blade:      310x19x1 mm(standard) or    310x25x3 (optional)
Cutter block speed:      4800rpm
Planning table size:        1380x310mm
Max. Planning width:       310mm
Thicknessing table size:    540x306mm
Max Thicknessing width:     305 mm
Max chip removal(planning):     4mm
Max chip removal(thicknesser):       2mm
Max thicknessing height:       225mm
Wood feed rate:       6m/min
Fence size:        1200x150mm
Fence pivoting:         90-45deg.
Dust port diameter:     100mm
Packing size:      1415x580x1045mm
Weight :      272/332 kg
