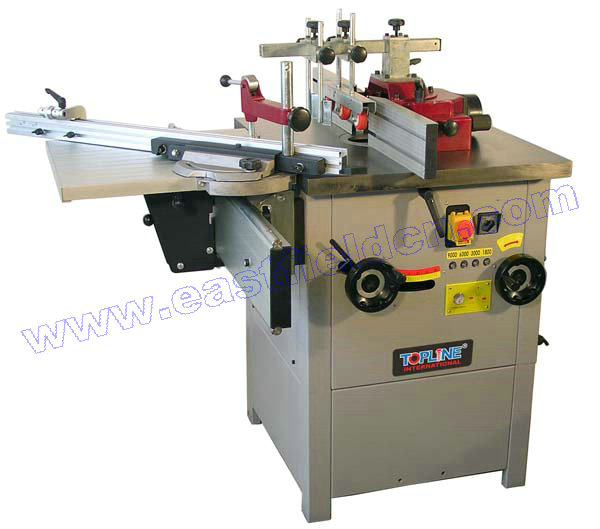

Spindle Moulder w/ Tilting Shaft
Model MX5110T

Motor power:  230V~, 50Hz, 2800W or 400V,3~, 50Hz, 2800W
Motor speed: 2800rpm
Motor Protection:  Thermal link
Table size:    640x710mm
Table height:    900mm
Spindle diameter:   30mm
Spindle travel:     100mm
Table opening:  200mm
Table tilt:   -5-+30deg.
Table ring:   200mm
Tool diameter Max:     200mm
Shaft speed:      1800/3000/6000/9000 rpm
Suction nozzle:     100mm
Packing size:     750x680x770, 510x490x300, 1240x300x100mm
Weight:     198/218 kg

Features:
Use as a sander @ 1800 rpm
Work-piece roller feeder

110V~,60Hz; 220V,3~,60Hz motor avaliable
