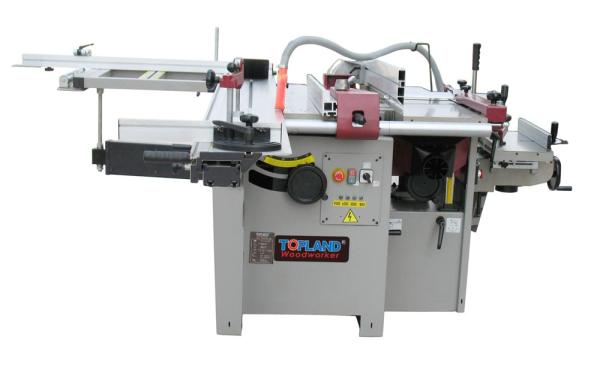

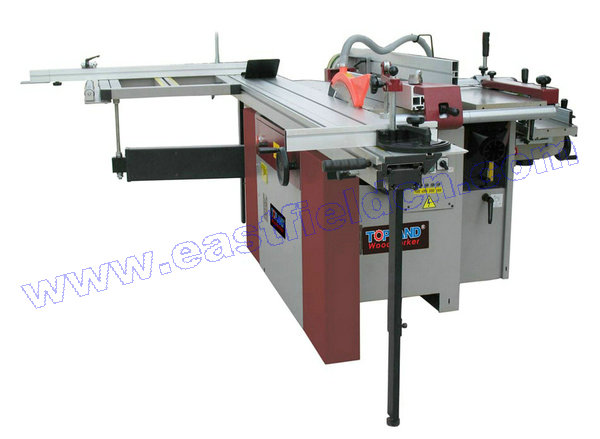

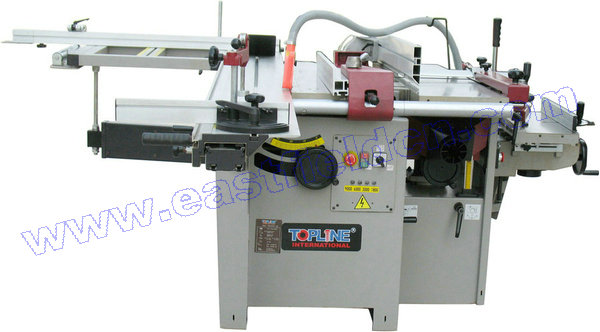

CM315/310/8-1300(1600 &2000) Type

CM315/310/8-2600 Type


Planer & Thicknesser

Motor power 230V~,50Hz,3000W
                         400V,3~,50Hz,3800W
Cutter diameter        70mm
Knives of cutter        3
Knives size        310x19x 1mm
Cutter speed 4800 rpm
Total length of planer table 1380mm
Max planing width 310mm
Max chip removal 4mm
Thicknessing bed 540x 306mm
Max thicknessing width 305mm
Max chip removal 2mm
Feed rate 6m /min
Max timber height 225mm
Fence size 1200x 150mm
Fence tilt 45 ° ~90 °
Vacuum port diameter 100mm

Morticer

Table size 500x 210mm
Max tool diameter 16mm
Table vertical travel 140mm
Table lateral travel 125mm
Table logitudinal travel 290mm

Table saw/ Panel saw

Motor power 230V~,50Hz,3000W

                  400V,3~,50Hz,3800W
Max/min main blade size: 315/254x30x 3mm
Main blade speed 4500rpm
Scoring blade size 2~100x20mm *
Scoring blade speed 8500 rpm
Main blade tilt 4 5 ° ~90 °
Cutting capacity :100 mm @90° **

                       80mm @45
°
Main table size 300x 860mm
Rear table size 300x 505mm
Sliding rail 1300mm ***
Cross cutting table 600x 480mm
Vacuum port diameter 100mm

Spindle Moulder

  Motor power 230V~,50Hz,2800W

                 400V,3~,50Hz,2800W
Table size    300x 860mm
Max tool diameter 200mm
Spindle vertical travel 100mm
Spindle speed (rpm) 1800,3000,6000,9000
Vacuum port diameter 100mm

  Packing Size:

Model

Packing Size

Weight

CM315/310/8-1300

1570x1220x985mm

555/590kgs

CM315/310/8-1600

1570x1220x985mm & 1700x320x245mm

560/605kgs

CM315/310/8-2000

1570x1220x985mm & 2100x320x245mm

565/615kgs

CM315/310/8-2600

1570x1220x985mm & 2700x320x245mm

590/650kgs





 Eight Function:



l    Planing mode
l    Mortising mode
l    Thicknessing mode
l    Spindle moulder mode
l    Spindle speed @ 1800 rpm for Grinding
l    Moulding height meter, 1300mm Sliding panel carriage (Optional: 1600,2000,2600 mm )
l

Easy adjustment of scoring blade (lower/rising, left/right/ locking), 254 mm main blade with scoring blade
l    Table saw mode w/315 mm main blade. Without scoring blade

Note: * If the main blade is 315x30x3mm , the scoring blade isn’t fitted.
          ** If the main blade is 254x30x3mm , the capacity is 70mm @90 °
, 55mm@45° .
        *** The length of sliding rail can be longer as customer’s order (1600,2000,2600mm ).



   110v~,60Hz, 220V,3~, 60Hz motor available
