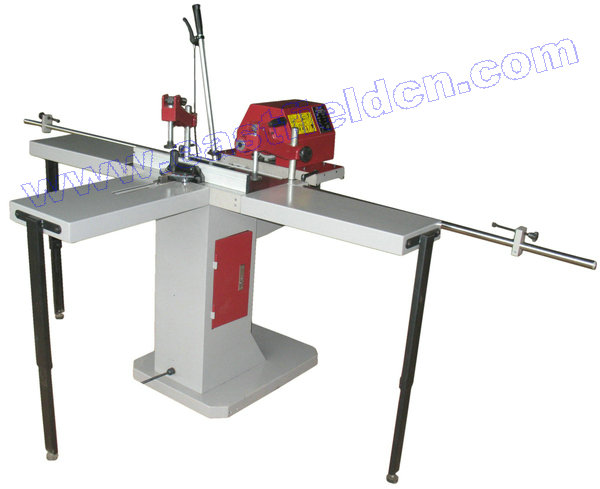

Mortising Machine
Model BM2200PRO

Motor: 230V~,50Hz, 3000W
           400V,3~,50Hz, 3800W
Main table size: 570x300 mm

Ext. table size: 600x300 mm
Chuck capacity:   20 mm

Max morticing depth: 140 mm
Table movement lateral: 290 mm
Table movement longitudinal: 155 mm
Dust port size: 100 mm
Packing size: 855x600x1160 mm (48pcs/20')
Weight: 140/160 kg

Lower assembling fork for drilling/mortising thick workpiece
Pin drilling device with 4 different defined engage position of 16, 20, 22, 25mm
Built-in cabinet door for tools staorage

110v~,60Hz, 220V,3~, 60Hz motor availabl e
