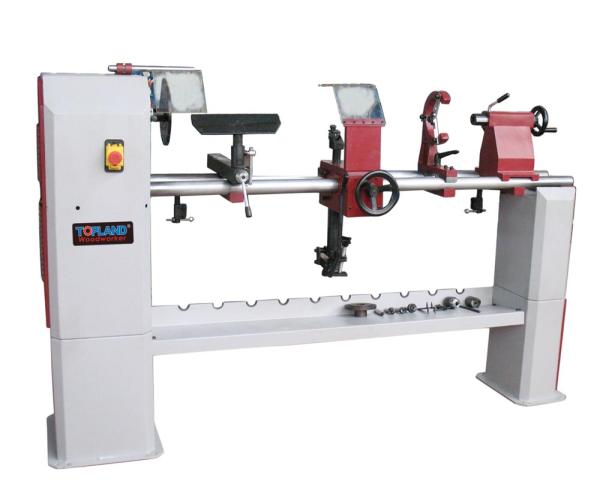

Copy Wood Lathe
Model CWL1300/CWL1500

Motor power: 230V,50Hz~, 1100W  or 400V,3~,50Hz,1100W
Speed: 2800, 1950, 1000, 500 rpm
Distance between centers: 1300mm(CWL1300); 1500mm(CWL1500)
Swing over bed: 420mm
Main center thread: M33x3.5
Copying depth: 45mm
Packing size:

Model

Packing Size

Pcs Per Unit

Weight

CWL1300

2080x520x980 mm

22pcs/20 '

200/238 kg

CWL1500

2280x520x980 mm

22pcs/20 '

212/250 kg


Features:
Templet clamp centers.
Copy-cutting tool-rest.
Steadying rest.
With tool shelf.

110V~,60Hz,220V,3~,60Hz motor available
