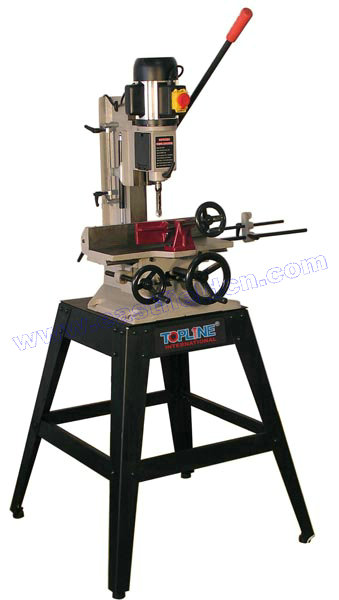

1" Mortising Machine
Model MM20

Motor: 230V~,50Hz, 750W,2850rpm
Chuck capacity: B16 16mm
Chisel capacity: 6-25mm
Max morticing depth: 76mm
Max timber height: 200mm
Max timber width: 140mm
Table movement lateral: 125mm
Table movement longitudinal: 370 mm
Accepted chisel collar size: 3/4", 13/16", 1-1/8" & 1-13/16"
Packing size: 576x520x876 mm
Weight: 90/98kg

Extension height adjust
Ratchet multi positioning handle
Quick release vise
Optional 100mm dust kit

110V~,50Hz motor avaliable
