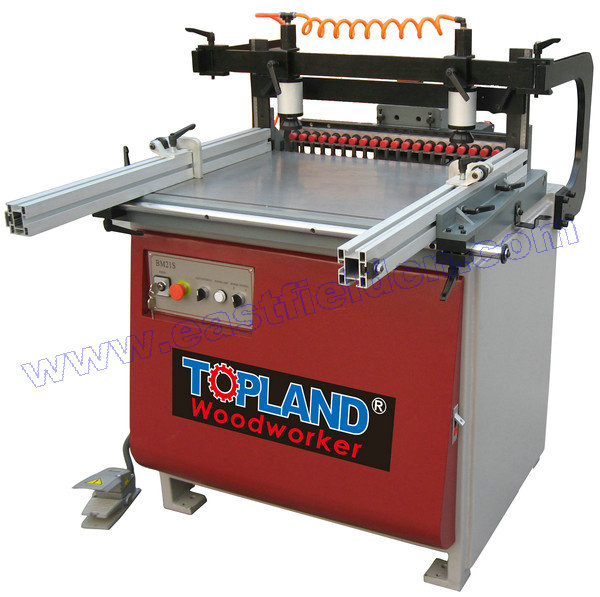

Single Row Multi-boring Machine
Model BM21S

Motor: 230V~,50Hz, 1500W
           400V,3~,50Hz, 1500W
Main table size: 890x625 mm

Morticing size:   50 mm
Chuck quantity:    21 pcs
Chuck interval:    32 mm

Chuck speed:   2840 rpm
Packing size: 1000x1000x1100 mm
Weight: 360/380 kg

Features:
Foldable guide bar for rip fence
Quick-change chucks
Readout for spindle travel
Boring unit pneumatical tiltable 0°, 45°, 90°

110v~,60Hz, 220V,3~, 60Hz motor availabl e
