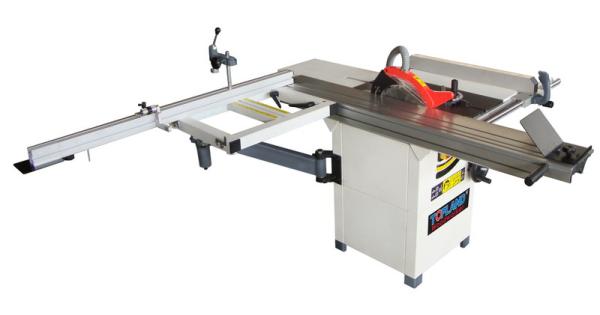

Table Saw Sliding Panel Saw

TS250ESP

Motor: 230V~,50Hz,2200W or 400V,3~,50Hz, 2800W
Blade size: 254x15.875(5/8")x3 mm
Blade speed: 3200 rpm
Max cutting depth: 75mm @ 90degree; 45 mm @ 45degree
Main table size: 650x295 mm
Extension table size: 650x350mm
Rear table: 400x280 mm
Sliding rail: 1500mm
Sliding table: 600x450 mm
Packing size: 620x700x530 mm & 1700x250x200 mm & 630x480x150 mm
Weight: 135/160 kg

Features:

Fine adjustable & quick lock rip fence.
Heavy duty mechanism.
Roller on sliding table for easy infeed of wood panel.
Optional mobile wheel kit.

110v~,60Hz, 220V,3~, 60Hz motor available
