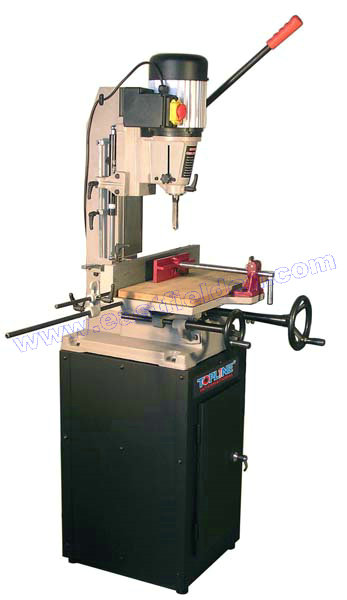

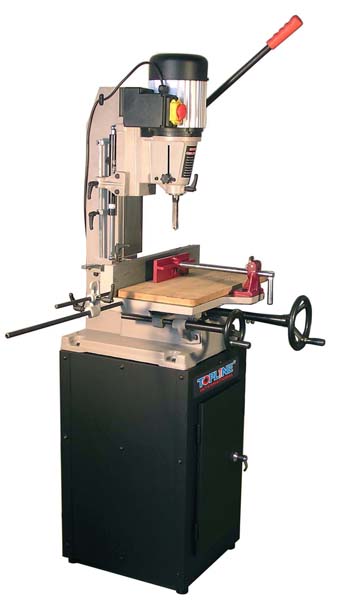

Heavy Duty Mortising Machine
Model MM25HD

Motor: 230V~,50Hz, 1500W,2850rpm
Chuck capacity: B16 16mm
Chisel capacity: 6-25mm
Max morticing depth: 76mm
Max timber height: 250mm
Max timber width: 250mm
Table movement lateral: 125mm
Table movement longitudinal: 400 mm
Accepted chisel collar size: 3/4", 13/16", 1-1/8" & 1-13/16"
Packing size: 580x560x940 mm
Weight: 105/125kg

Two position depth stop for haunching
Scale in both metric &imperial system table stop
Ratchet multi positioning handle
Quick release vise
Optional cabinet stand
Optional 100mm dust kit

110v~,60Hz, 220V,3~, 60Hz motor availabl e
