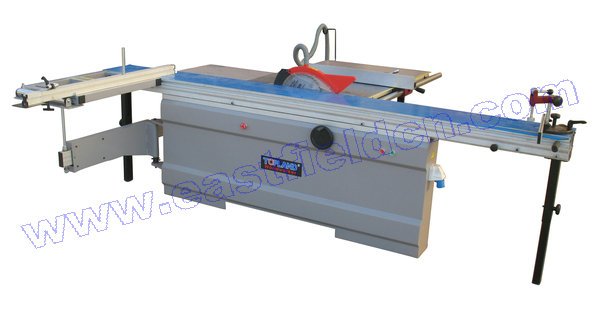

Professional Sliding Panel Saw
Model PS315PRO

Main motor:    230V, 50Hz, 4000W
Main table size: 500x900 mm
Extension table size: 750x900 mm
Rear extension table: 400x400 mm
Sliding panel size: 3200x290 mm
Cross cut table: 680x580 mm
Cross cut fence: 1200~2200 mm
Main blade size: 315x30x3 mm
                        254x30x3 mm
Main blade speed: 4500 rpm

Scoring blade size: 120x20x3 mm
Scoring blade speed: 8500 rpm
Max cutting depth:
100 mm @ 90° ; 80 mm @ 45°
                            75 mm @ 90 ° ; 60 mm @ 45 °

Max dist, blade-fence: 1250 mm
Sliding panel stroke: 2900 mm
Max cross cut width: 1350 mm
Packing size: 2200x890x890mm
Weight: 422/487Kg

 Features:

Rigid rip fence with quick locking handle.
Large door for easy maintenance.


 110V, 60Hz motor available
