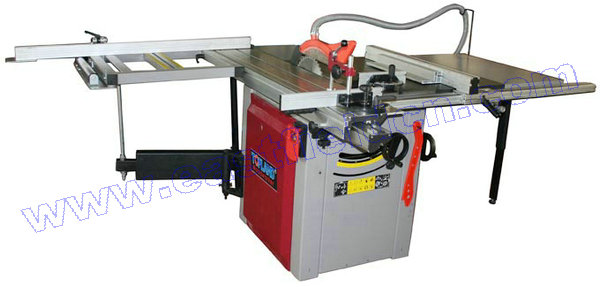

Sliding Panel Saw
Model PS12

Motor: 230V~,50Hz,3000W or 400V,3~,50Hz, 3800W
Main blade size: 315x30x3 mm or 254x30x3 mm
Main blade speed: 4000 rpm

Scoring blade size: 90x20x3 mm
Scoring blade speed: 5800 rpm
Max cutting depth: 100 mm @ 90degree; 80 mm @ 45degree (315mm blade)
Max cutting depth: 75mm @ 90degree; 60 mm @ 45degree (254mm blade)
Main table size: 385x800 mm
Extension table size: 440x800 & 440x800 mm
Rear table: 310x500 mm
Sliding rail: 1550mm
Sliding table: 680x580 mm
Max distance from blade to rip fence: 1220mm
Max sliding panel travel: 1700mm
Max cross cut width: 1350mm
Packing size: 910x740x1050 mm & 1610x320x245 mm
Weight: 260/307 kg

Features:

Easy adjustment of scoring blade (lower/rising, left/right, locking).
Adjustable riving knife to ensure the saw can be fitted with 315 & 254 mm blade.
Roller on sliding table for easy infeed of wood panel.
Optional mobile wheel kit.
Key-off switch

110v~,60Hz, 220V,3~, 60Hz motor available
