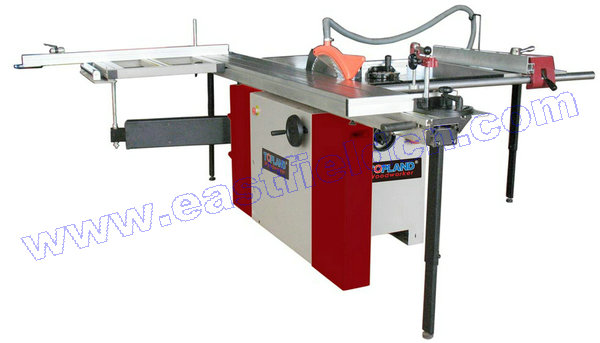

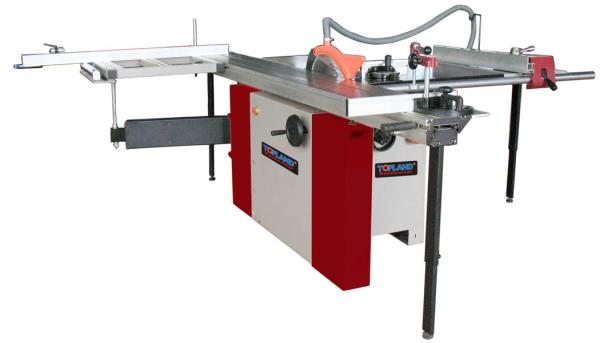

PS315/2600 Type (With Two Support Body)

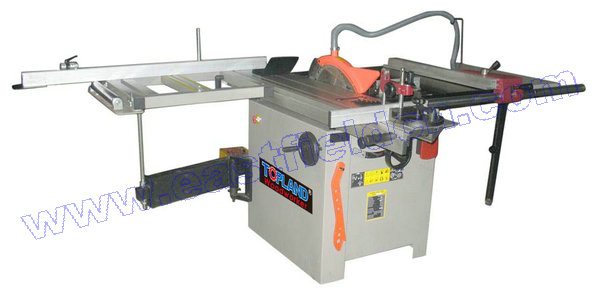

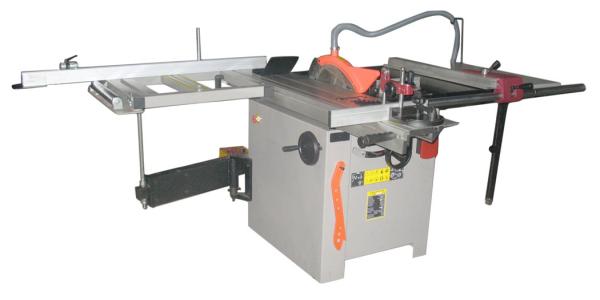

PS315/1600(2000) Type

Sliding Panel Saw
Model PS315

Motor: 230V~,50Hz,3000W or 400V,3~,50Hz, 3800W
Main blade size: 315x30x3 mm or 254x30x3 mm
Main blade speed: 4500 rpm

Scoring blade size: 2-100x20 mm
Scoring blade speed: 5800 rpm
Max cutting depth: 100 mm @ 90degree; 80 mm @ 45degree (315mm blade)
Max cutting depth: 75mm @ 90degree; 60 mm @ 45degree (254mm blade)
Main table size: 380x800 mm
Extension table size: 440x800 & 440x800 mm
Rear table: 310x500 mm
Sliding rail: 1600mm
Sliding table: 680x580 mm
Max distance from blade to rip fence: 1220mm
Max sliding panel travel: 1400mm(PS315/1600 type); 1800mm(PS315/2000 type);
2400mm(PS315/2600 type)
Max cross cut width: 1350mm
Packing size:

Model

              Packing Size

Weight

PS315/1600

930x765x1035 mm   1700x320x245 mm   855x280x160 mm

286/341 kg

                                         27pcs/20 60pcs/40

PS315/2000

930x765x1035 mm   2100x320x245 mm   855x280x160 mm

298/354 kg

                                                27pcs/20   60pcs/40

PS315/2600

1200x765x1035 mm   2700x320x245 mm

331/396 kg

                                                20pcs/20   40pcs/40

 Features:

Easy adjusttable machinism & 2-piece scroring blade (lower/rising, left/right, locking).
Adjustable riving knife to ensure the saw can be fitted with 315 & 254 mm blade.
Roller on sliding table for easy infeed of wood panel.
Easy adjustable fence lock lever.
Foldable fence rail & extension table.
Optional mobile wheel kit.

Key-off switch

110v~,60Hz, 220V,3~, 60Hz motor availabl e
**Sliding panel is differ from 1600, 2000 and 2600 mm
