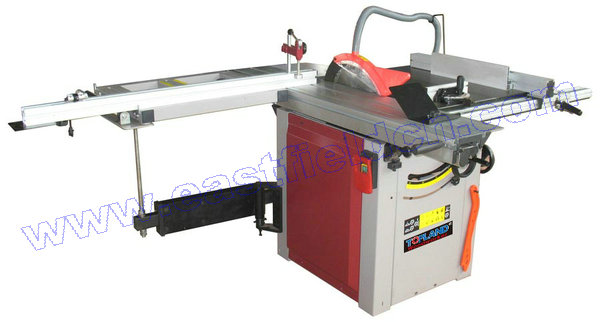

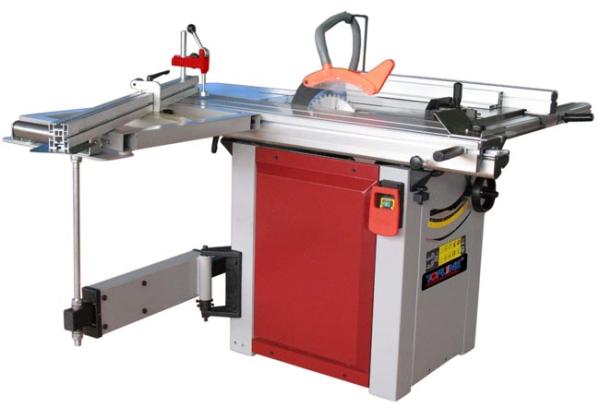

Table Saw w/Sliding Panel
Model TS10A
Motor: 230V~,50Hz,2200W or 400V,3~,50Hz, 3000W
Blade size:   254x30x3 mm
Blade speed: 3000 rpm

Max cutting depth: 75mm @ 90degree; 60 mm @ 45degree
Main table size: 385x800 mm
Extension table size: 305x800mm
Rear table: 310x500 mm
Sliding rail: 1300mm
Sliding table: 680x450 mm
Packing size: 880x710x1050 mm & 1370x320x245 mm
Weight: 216/266 kg


Fine adjustable & quick lock rip fence.
Heavy duty mechanism.
Roller on sliding table for easy infeed of wood panel.
Optional mobile wheel kit.
Key-off switch

110v~,60Hz, 220V,3~, 60Hz motor available
