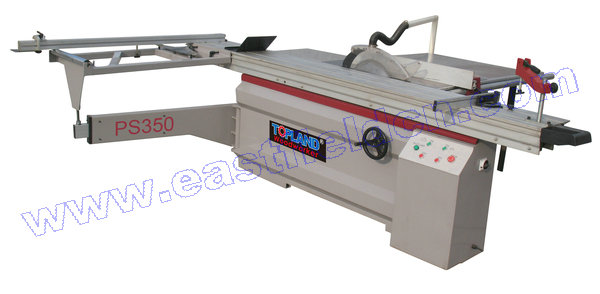

Professional Sliding Panel Saw
Model PS350

Main motor:   400V,3~,50Hz, 5500W
Scoring motor:   400V,3~,50Hz, 750W
Main table size: 650x1050 mm
Extension table size: 760x1050 mm
Rear extension table: 450x600 mm
Sliding panel size: 3200x320 mm
Cross cut table: 1160x600 mm
Cross cut fence: 1695~2695 mm
Main blade size: 350x30x3 mm
Main blade speed: 4000 rpm

Scoring blade size: 120x20x3 mm
Scoring blade speed: 8500 rpm
Max cutting depth:
105 mm @ 90° ; 74 mm @ 45°
Max dist, blade-fence: 1250 mm
Sliding panel stroke: 3000 mm
Max cross cut width: 2950 mm
Machine size: 3200x3200x1370mm
Packing size: 2280x1235x1150mm, 3280x410x210mm
Weight: 1000Kg

 Features:

Heavy duty, high precision mechanism.
Rigid rip fence with quick locking handle.
Large door for easy maintenance.


 220V,3~, 60Hz motor availabl e
