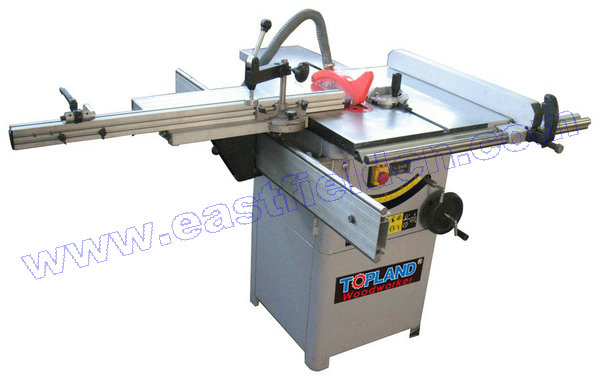

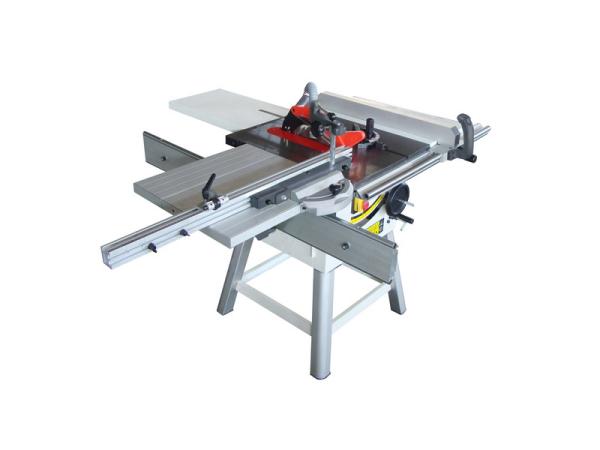

Table Saw Sliding Panel Saw

TS250ESL

Motor: 230V~,50Hz,1500W or 400V,3~,50Hz, 2000W
Blade size: 254x15.875(5/8")x3 mm
Blade speed: 3200 rpm
Max cutting depth: 75mm @ 90degree; 50 mm @ 45degree
Main table size: 650x505 mm
Extension table size: 650x350mm
Rear table: 400x280 mm
Sliding rail: 1300mm
Sliding table: 620(420)x320 mm
Packing size: 620x700x530 mm & 1000x250x220 mm & 1300x80x200 mm& 450x450x260 mm
Weight: 120/145 kg

Features:

Fine adjustable & quick lock rip fence.
Heavy duty mechanism.
Sliding table can be extended 200mm longer.
Optional mobile wheel kit.

110v~,60Hz, 220V,3~, 60Hz motor available
