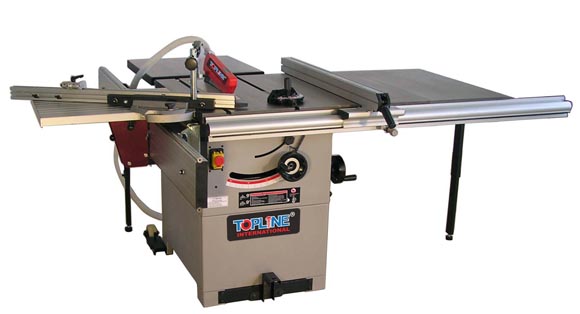

Table Saw
Model TS10
Motor: 230V~,50Hz,2200W or 400V,3~,50Hz, 2200W
Blade size:   254x30x3 mm
Blade speed: 3000 rpm

Max cutting depth: 75mm @ 90degree; 60 mm @ 45degree
Main table size: 560x800 mm
Extension table size: 305x800mm & 305x800mm
Rear table:  600x530 mm
Sliding rail: 2000mm
Sliding table: 500x480 mm
Packing size: 866x700x1040 mm & 2050x320x245 mm
Weight: 213/239kg

Features:

Fine adjustable & quick lock rip fence.
Heavy duty mechanism.
Optional mobile wheel kit.

110v~,60Hz, 220V,3~, 60Hz motor available
