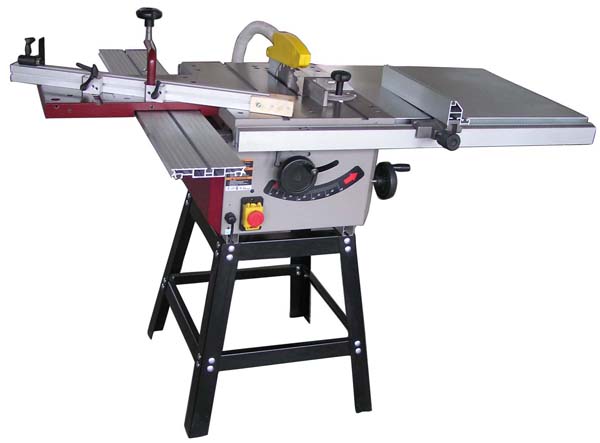

Table Saw
Model TS8
Motor: 230V~,50Hz,1100W
Blade size:   200x30x3 mm
Blade speed: 4700 rpm

Max cutting depth: 60mm @ 90degree; 40 mm @ 45degree
Main table size:  400x535 mm
Extension table size: 600x535 mm
Sliding rail: 1000mm
Packing size: 600x480x370mm , 620x580x60 mm & 1020x180x90mm
Weight: 69/77kg

Features:
Two way Mitre gauge
Cross cut fence with work-piece holder & work-stop


110v~,60Hz motor available
