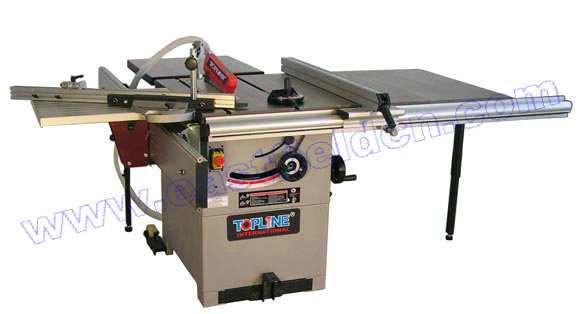

Table Saw
Model TS12
Motor: 230V~,50Hz,2800W or 400V,3~,50Hz, 2800W
Blade size:   315x30x3 mm
Blade speed: 4000 rpm

Max cutting depth: 100mm @ 90degree; 80 mm @ 45degree
Main table size: 600x800 mm
Extension table size: 440x800mm & 440x800mm
Rear table:  600x530 mm
Sliding rail: 2000mm
Sliding table: 500x480 mm
Packing size: 910x740x1040 mm & 2050x320x245 mm
Weight: 260/285 kg

Features:

Fine adjustable & quick lock rip fence.
Heavy duty mechanism.
Optional mobile wheel kit.

110v~,60Hz, 220V,3~, 60Hz motor available
