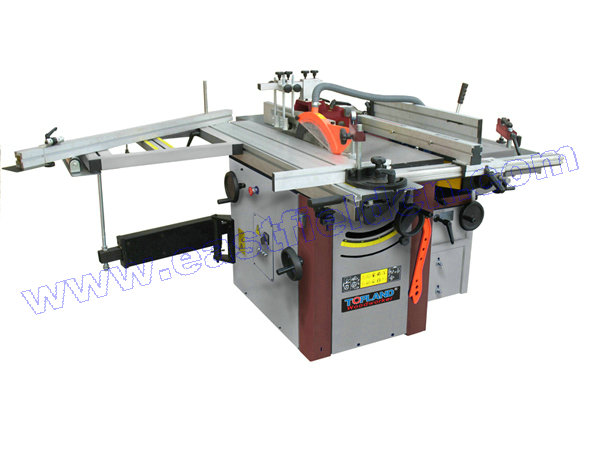

Woodworking COMBINED Machine

4 in 1 Combi-machine

Model: CM254/200/4

Spindle Moulder

Motor power:
230V~,50Hz,2200W or 400V, 3~,50Hz,2800W
Table size: 345x950mm
Hole size: 200mm
Max tool diameter: 200mm
Main spindle diameter: 30mm
Spindle vertical travel: 100mm
Spindle speed(rpm): 9000/6000/3000/1800

Table saw/ Sliding saw

Motor power: 230V~,50Hz,2200W or 400V, 3~,50Hz,2800W
Max/min main blade size: 254x30x3mm
Main blade speed: 4500rpm
Main blade tilt: 45°~90°
Cutting capacity: 75mm @90°
Cutting capacity: 60mm @45°
Main table size: 950x345mm
Rear table size: 505x250mm
Sliding rail: 1300(1550)mm
Cross cutting table: 600x450mm

 Packing Size:

Model

Packing Size

Weight

CM254/200/4-1300

1350x1165x945mm

280/325kgs

CM254/200/4-1550

1350x1165x945mm & 1600x320x245mm

295/340kgs

Five Function:

l Sanding mode
l Spindle moulder mode
l
Table saw mode
l Sliding panel carriage (Optional: 1300,1550mm )

110v~,60Hz motor available
