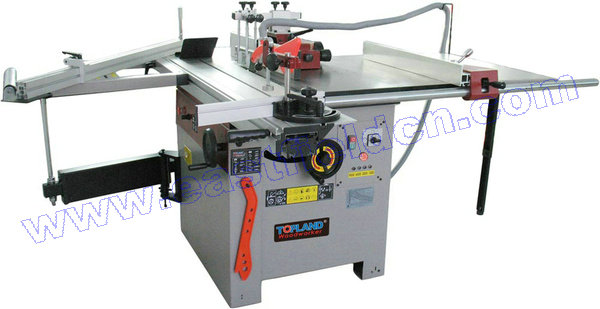

Combi Machine
 Model
 CM315/200/5


Table saw/ Panel saw

Motor power:   230V~,50Hz,3000W
                       400V,3~,50Hz,3800W
Max/min main blade size: 315/254x30x 3mm
Main blade speed:   4500rpm
Scoring blade size:   2~100x20mm *
Scoring blade speed:   8500 rpm
Main blade tilt:   4 5 ° ~90 °
Cutting capacity:  100 mm @90°* *;
                80 mm @45 °
Main table size:  450 x 860mm
Exten table size: 2--440 x 505mm
Rear table size: 450 x 500mm
Sliding rail:   1300mm ***
Cross cutting table:   600x 480mm


Spindle Moulder

Motor power:   230V~,50Hz,2800W
                       400V,3~,50Hz,2800W
Table size:     1360 x450 mm
Hole size:  200mm
Max tool diameter:   200mm
Spindle diameter:   200mm
Spindle vertical travel:
100mm
Spindle speed (rpm):   1800,3000,6000,9000



 Packing Size:

Model

Packing Size

Weight

CM315/200/5-1600

990x825x1035mm & 875x180x300mm & 550x400x270mm & 1700x320x245mm

352/442kgs

CM315/200/5-2000

990x825x1035mm & 875x180x300mm & 550x400x270mm & 2100x320x245mm

364/454kgs

CM315/200/5-2600

1220x825x1035mm & 540x480x320mm & 2860x320x245mm

391/499kgs



Five Function:
l    Panel saw mode; 1300mm Sliding panel carriage (Optional: 1600,2000,2600 mm ).
l    Table saw mode; W/315 mm main blade. Without scoring blade, 254 mm main blade with scoring blade.
l    Spindle moulder mode; Spindle speed @ 1800 rpm for Grinding.
l    Moulding height meter.
l    Easy adjustment of scoring blade (lower/rising, left/right/ locking).





Note: * If the main blade is 315x30x3mm , the scoring blade isn’t fitted.
          ** If the main blade is 254x30x3mm , the capacity is 70mm @90 °
, 55mm@45° .
        *** The length of sliding rail can be longer as customer’s order (1600,2000,2600mm ).



   110v~,60Hz, 220V,3~, 60Hz motor available
