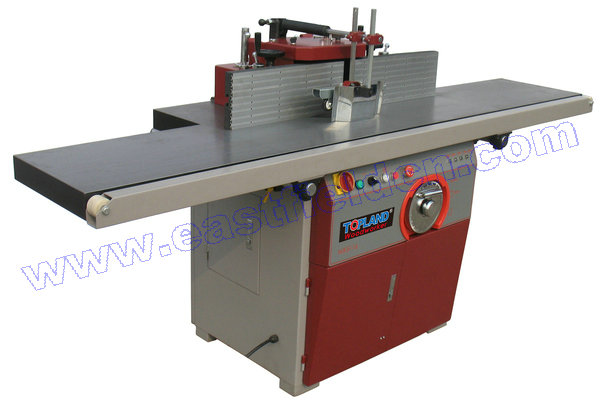

Spindle Moulder w/ Fixed Shaft
Model MX5116

Motor power:   400V,3~, 50Hz, 5500W
Motor speed: 2800rpm
Motor Protection:  Thermal link
Main Table size:     1100x700mm
Exten. Table size:     650x420mm
Spindle diameter:   35mm
Spindle travel:     160mm
Table opening:  320mm
Exten. working support:    410mm
Tool diameter Max:      320mm
Shaft speed:       3000/5000/8000/10000 rpm
Suction nozzle:     120mm
Packing size:      1140x810x1100, 850x580x350, 2450x230x135mm
Weight:      540/560 kg

Readout for fence movement.
Work-piece roller feeder & anti-kickback.
Professional protection cover.
Turnover protection cover for easily changing cutter.

220V,3~,60Hz motor avaliable
