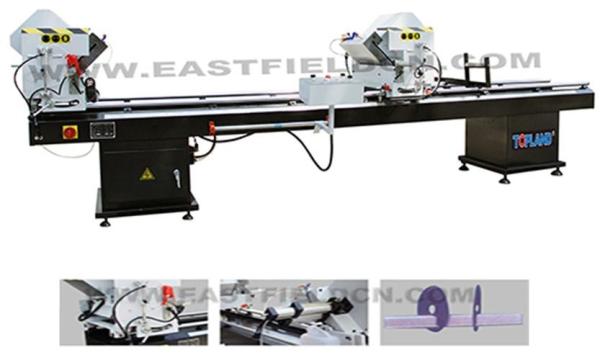

Double Mitre Cutting Saw for Aluminium/Plastic WIN-DOORS

Model: DSCS400x3500

Motor: 380V, 3~,50Hz,3000W

Blade size: 450x30 mm
Blade speed: 2840 rpm
Max cutting size: 200x100mm
Cutting angle: 45degree to 90degree
Packing size: 4000x900x1500 mm
N.W.: 600 kg

Features:

It is used for the cutting of aluminium alloy or PVC plastic materials which is in angle of 45°~90°, being able to work effectively and operate flexibly.

Adopt automatic opening and closing the cover, oil dampling cylinder, feed stable,high security, it is the necessary equipment in the plastic windows and doors industry.

220V~,50Hz or 60Hz motor is available
