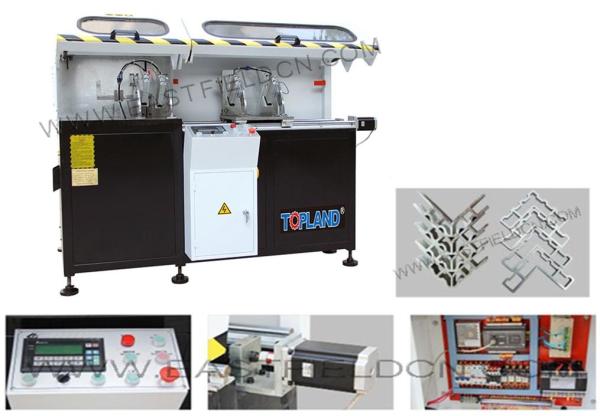

Aluminium Corner Cutting Saw-CNC

Model: CCS500-CNC

Motor: 380V, 3~,50Hz,3000W

Blade size: 500x30 mm
Blade speed: 2840 rpm
Max cutting size: 150x300mm
Packing size: 1900x1700x1200 mm
N.W.: 850 kg

Features:

It is easy to operate, maintain and protect. The performance is reliable and the technology is advanced.

Especially used for the cutting of aluminum windows and doors corner materials which has been put in the machine.

Only one installation can achieve continuous cutting of 6 meters decoding profiles.

Adopt the import control system with man-machine interface to realize high degree of automation.

With carbide saw blade, the cutting speed of tools is fast, featuring high production rate and high precision machining.

Feeding campaign uses linear motion bearing to achieve motion resistance and high precision.

Feeding mechanism uses in Taiwan ABBA ball screw, Delta stepper motor driver to achieve high precision feeding which is stable and reliable.

The clamping and advance and retreat of sawing adopt are controlled by pneumatic system and achieve easy operation.
