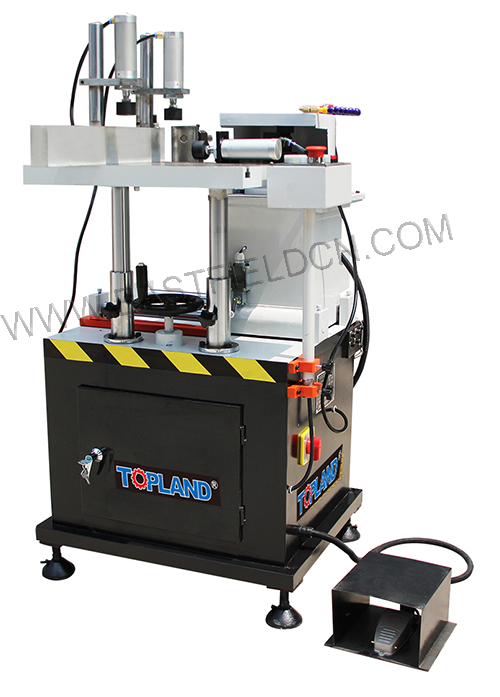

End Milling Machine for Aluminium/Plastic WIN-DOORS(for one piece of work-piece)

Model: EMA200

Motor: 380V, 3~, 50Hz, 1500W

Blade size: 110~200x32mm
Blade speed: 2840rpm
Profile open tenon(HxW): 70x45mm
Feeding journey of worktable: 0-320mm
Packing size: 850x740x1280 mm
N.W.: 300 kg

Features:

It can cut several materials effectively and simultaneously.

It is suitable for the mold processing of transverse face, step surface, transverse

face grain of various materials.

It can cut transverse face of 35°~90°at any angle.

Workbench can adjust up and down conveniently.

Cutters are installed in the high precision main bearings, and the moving precision of motor won’t be affected by processing precision.

Tool feed adopts linear bearing motion, ensuring stable work performance.

Circuit system installs motor phase sequence protection, improving the system security.

220V~, 50Hz or 60Hz motor is available
