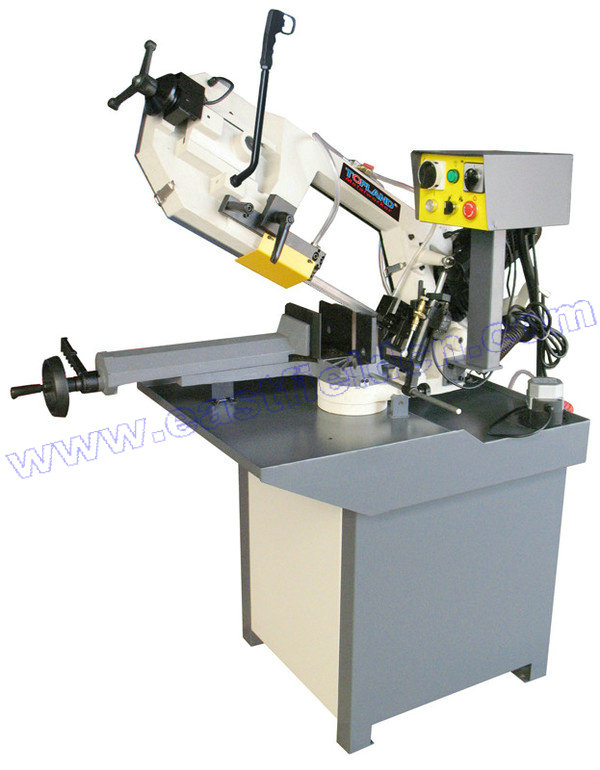

Metal Cutting Bandsaw

Model: MBS270FHE

Motor:   230V,50Hz~, 1100W 4poles      400V,50Hz,3~, 1500/1100W,  2/4 poles
Reduce gear rate:   18:1 (1~ motor)   36:1 (3~ motor)
Wheel diameter: 300mm
Blade size:   2450x27x0.9mm
Blade speed: 75m/min (1~motor)   37.5 or 75 m/min(3~ motor)
Cutting angle: 0, 30, 45, 60 degree
Coolant pump: 230V,50Hz~,75W;  400V, 50Hz, 3~, 75W
Packing size: 1320x760x950mm
Weight : 218/290kg



Feartures:

Adjustable hydraulic down-feed
Worn gear box has hardened & ground gears
Miter Cutting Ability
Blade Wheels have Heavy-duty Ball Bearings
Quick release vise for fast job changes
Built-in coolant system use water soluble oil

110v~,60Hz, 220V,3~, 60Hz motor available
