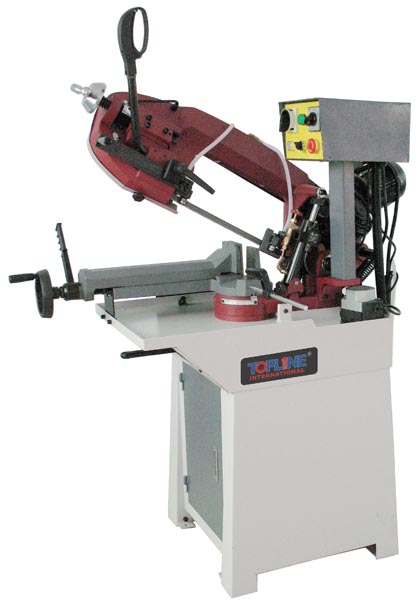

Motor:  230V,50Hz~, 750W 4poles      400V,50Hz,3~, 950/750W,  2/4 poles
Reduce gear rate:  18:1 (1~ motor)   36:1 (3~ motor)
Wheel diameter: 300mm
Blade size:  2110x20x0.9mm
Blade speed: 65m/min (1~motor)   32.5 or 65 m/min(3~ motor)
Cutting angle: 0, 30, 45, 60 degree
Coolant pump: 230V,50Hz~,70W;  400V, 50Hz, 3~, 70W
Packing size 1150x560x930  &  690x590x240 mm
Weight : 169/211kg


Adjustable hydraulic down-feed
Worn gear box has hardened & ground gears
Miter Cutting Ability
Blade Wheels have Heavy-duty Ball Bearings
Quick release vise for fast job changes
Built-in coolant system use water soluble oil
