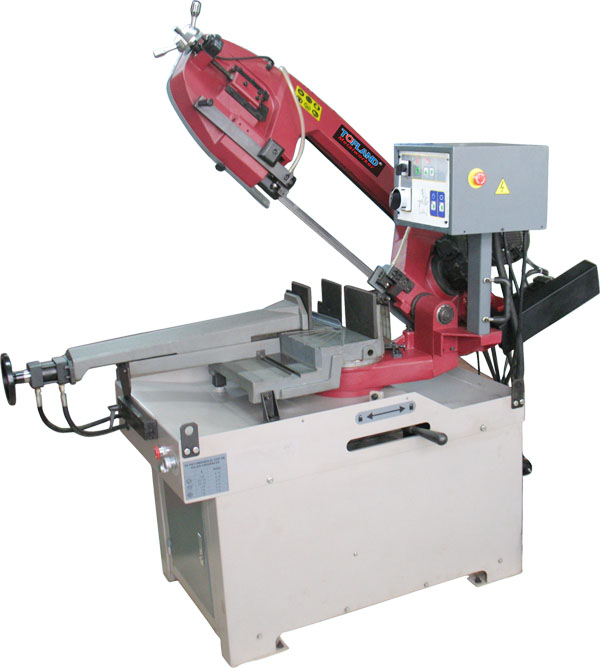

Semi-Automatic Metal Bandsaw
Model MBS370SA

Motor:   400V,50Hz,3~, 1500/1100W,  4/8 poles
Reduce gear rate:   25:1
Wheel diameter: 380mm
Blade size:   3160x27x0.9mm
Blade speed:  34 or 68 m/min
Cutting angle: 45° L, 30° L, 15° L, 0° , 15° R, 30° R, 45° R, 60°R
Coolant pump:   400V, 50Hz, 3~, 25W
Packing size: 1770x765x1120mm
Weight: 365/415kg


Saw bow swing from R60° to L45°
Driven by tempered & ground worm screw bronze gear
Conversion switch manual/automatic
cabinet stand for storage of working tools and gauges
Hydraulic cylinder for automatic stempless cutting
Automatic operation
Blade tension indicating meter


220V,3~, 60Hz motor available
