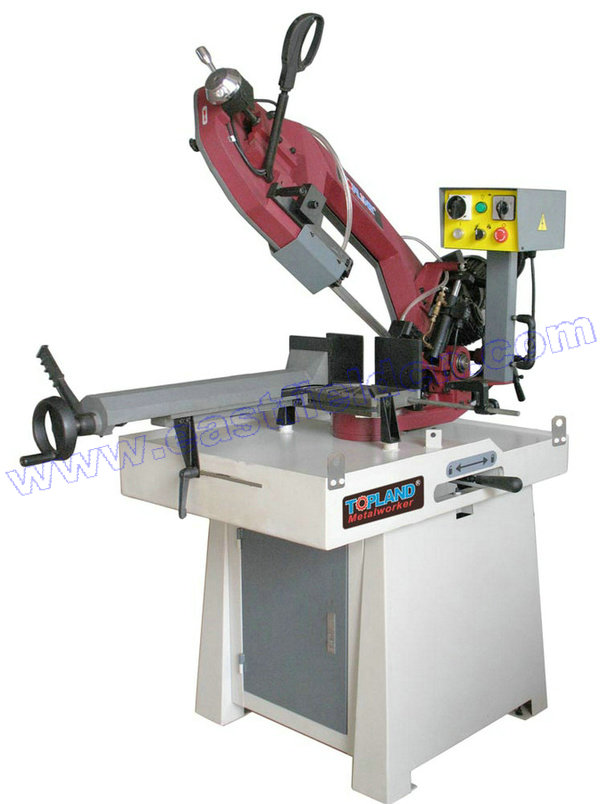

Heavy Duty Metal Bandsaw
Model MBS320FH

Motor:   230V,50Hz, 1500W,  4 poles or 400V,50Hz,3~, 1500/1100W,  2/4 poles
Reduce gear rate:   18:1(1~motor); 36:1(3~motor)
Wheel diameter: 300mm
Blade size:   2680x27x0.9mm
Blade speed:  70m/min(1~motor); 35 or 70 m/min(3~motor)
Cutting angle: 45° L, 30° L, 15° L, 0° , 15° R, 30° R, 45° R, 60°R
Coolant pump:   230V, 50Hz, 75W; 400V, 50Hz, 3~, 75W
Packing size: 1600x850x955mm
Weight: 320/384kg

Feartures:

Saw bow swing from R60° to L45°
Driven by tempered & ground worm screw bronze gear
Conversion switch manual/automatic
Cabinet stand for storage of working tools and gauges
Hydraulic cylinder for automatic stempless cutting
Manual operation/automatic operation selector
Comfortable operation handle



1110V~, 60Hz; 220V,3~, 60Hz motor available
