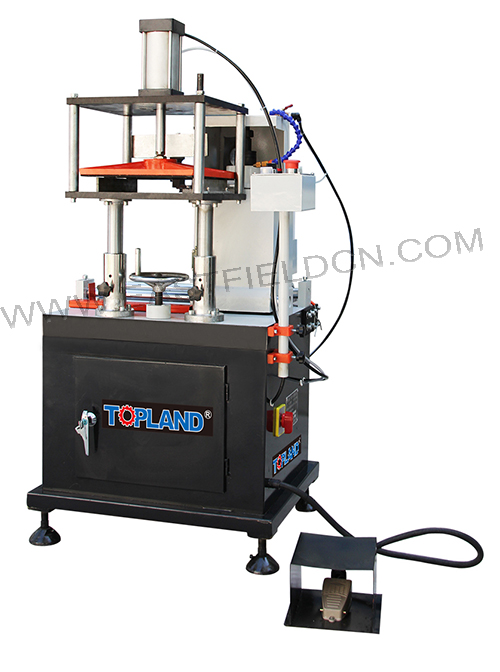

End Milling Machine for Aluminium/Plastic WIN-DOORS(for several pieces of work-pieces)

Model: EMA200B

Motor: 380V, 3~, 50Hz, 2200W

Blade size: 110~200x32mm
Blade speed: 2840rpm
Profile open tenon(HxW): 70x45mm
Feeding journey of worktable: 0-320mm
Packing size: 850x740x1500 mm
N.W.: 330 kg

Features:

220V~, 50Hz or 60Hz motor is available

It can cut several materials effectively and simultaneously.

It is suitable for the mold processing of transverse face, step surface, transverse

face grain of various materials.

It can cut transverse face of 35°~90°at any angle.

Workbench can adjust up and down conveniently.

Cutters are installed in the high precision main bearings, and the moving precision of motor won’t be affected by processing precision.

Tool feed adopts linear bearing motion, ensuring stable work performance.

Circuit system installs motor phase sequence protection, improving the system security.
