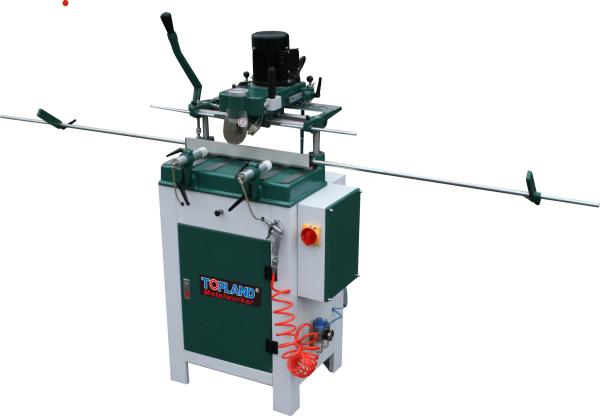

Aluminium Copy Router Machine

Model: ACR260PVL

Motor: 230V~,50Hz,800W or 400V,3~,50Hz, 1200W
Milling cutter speed: 14000 rpm
Max cutting depth: 130mm
Max cutting width: 110mm
Max cutting length: 260mm
Air pressure: 0.6 ~ 0.8 Mpa

Packing size: 800x580x1460 mm
Weight: 74/112 kg


The door for tool storage and maintainence.

Pneumatic vices

Coolant system

Copy template supplied

Induction motor

110v~,60Hz, 220V,3~, 60Hz motor available
