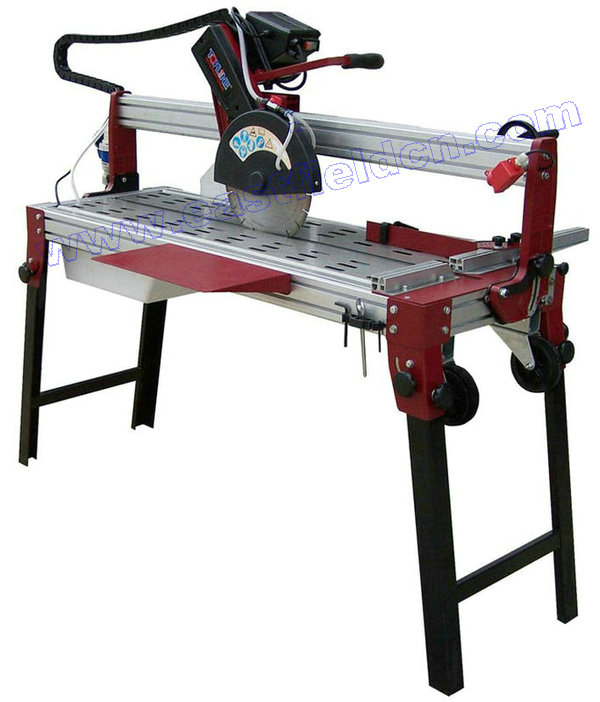

Stone Cutting Saw
Model
SCM300PRO

Motor:   230V,50Hz~, 2000W  or 400V, 3~, 50Hz,2000W
Blade size:   300x25.4 mm
Blade speed: 2800rpm
Max cutting capacity: 1200(L)x70~110(H)mm(SCM300PRO/1200)
                                   1150(L)x70~110(H)mm(SCM300PRO/1150)
Main Table size: 1305x485mm(1255x485mm)
Exten. table size: 400x235mm
 Cutting head swivel: 90~45 degree
Coolant capacity: 230V,50Hz~, 45W
Packing size: 1740x570x815mm(1680x570x815mm)
Weight : 75/90 kg

Feature:

With Tools holder & folding legs.
Chain style cable holder .
Rubber pad on the table for anti-slippy and reducing noise.
Bevel 45° cutting-blade at center of table.
Belt driving system for protecting motor when overload.
Aluminium frame to get maxinum rigidity & lightness.
PS water tank with scew tap.
Moving wheels.

Optional:

Laser guide.
Hand operation wheel.


 110V,60Hz~ ; 220V,3~,60Hz motor avaliable
