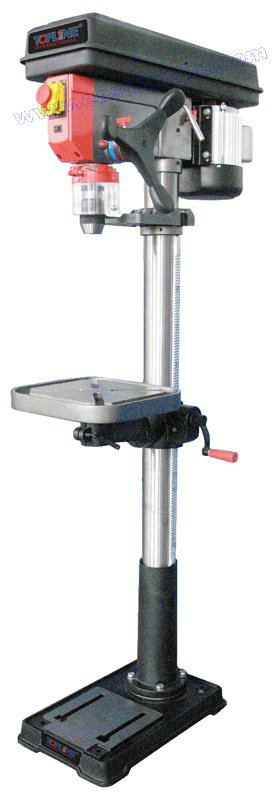

Motor 750W
Chuck Capacity 16mm
Max Drill Capacity 20 mm
Spindle Travel 80mm
Spindle Taper MT2
Column Diameter 80mm
Spindle Speed 12(220-2600)rpm
Distance /Chuck to Column 190mm
Table Size 300x300 mm
Base Size 500x300 mm
Packing Size 1215x475x275mm
Weight  82/79Kg

Optional:Cast iron feed handle
Optional: Key-less chuck
Optional:Built-in light
Optional:Tool holder
Optional:Coolant system
Optional:Aluminum pulley & time belt
Optional:Aluminum motor housing
Optional:Left & right running(3 phase motor only)
