ENGLISH WHEEL KIT

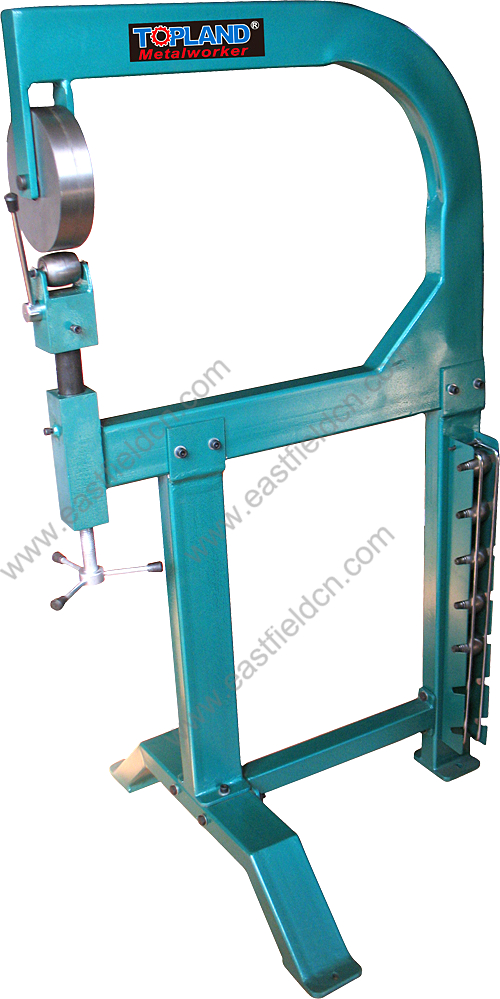

 EW-685(27" ENGLISH WHEEL KIT)                                             EW-685HD(27" HEAVY DUTY ENGLISH WHELL KIT)





SPECIFICATION:

MODEL Throat Top Anvil Lower Anvil N.W. Packing
/G.W.(kg) Size(cm)
EW-685 685 8"dia.x2"thickness 3", 4", 6", 8", 10", 12"dia.x2"radius with dual sealed ball bearing 80/85 92x78x20
EW-685HD 685 8"dia.x2"thickness 3", 4", 6", 8", 10", 12"dia.x2"radius with dual sealed ball bearing 96/120 105x105x32
EW-765 765 8"dia.x2"thickness 3", 4", 6", 8", 10", 12"dia.x2"radius with dual sealed ball bearing 86/92 100x78x20

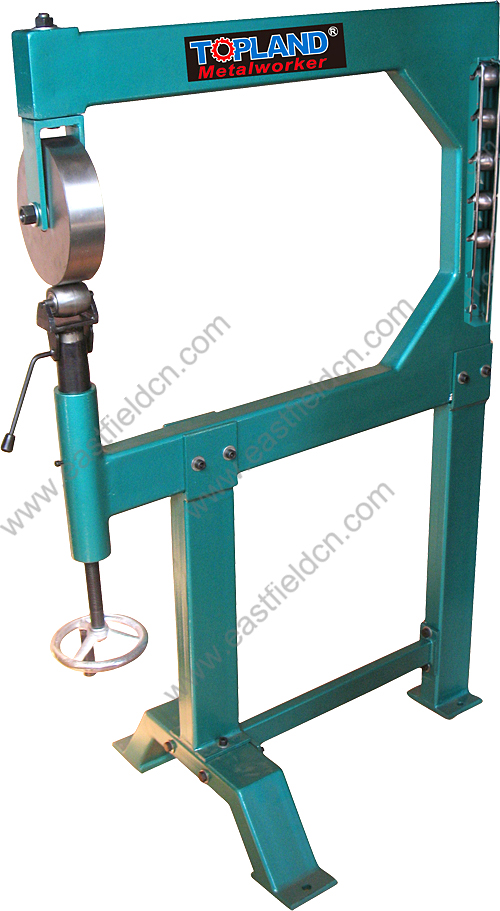

EW-765(30" ENGLISH WHEEL KIT)





NOTE: Top and Lower wheel can turn 90°. (only for EW-765)
