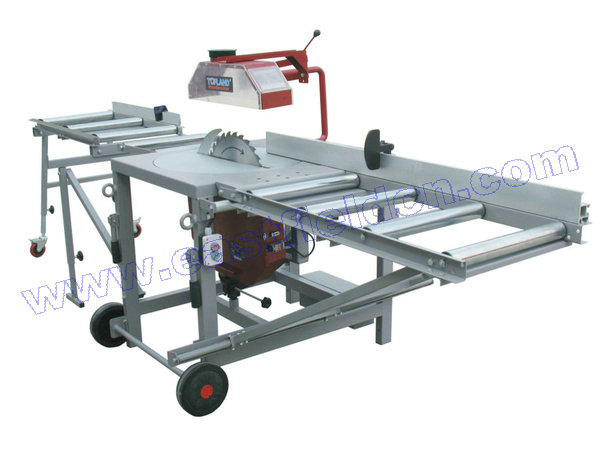

Heavy Duty Circular Saw
Model CSB400

Motor:   230V,50Hz~, 3000W   or 400V,3~,50Hz,3000W
Blade size:   400x30x3mm
Blade speed: 2800rpm
Max cutting capacity:  120mm @ 90° ; 90 mm @ 45°
Table size: 945x715mm
Packing size:  1100x910x970 mm(24pcs/20')
                       1530x630x310 mm(roller stand)
Weight : 210/240kg
               55/57kg(roller stand)

Feature:
Optional 1m infeed roller stand & 1m out-feed roller.
Two wheels for easy transportation.
 Three mode: Rip cutting mode and Cross cutting mode.
 Easy cleaning Blade house.
 Lever for easy mitre cutting.
Tool box for storge working tools & gauges.
Blade tilting to 45°.


110V~,60Hz,220V,3~,60Hz motor available
